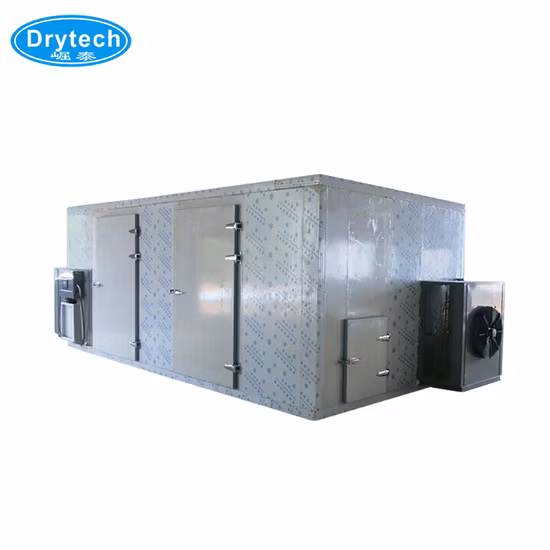

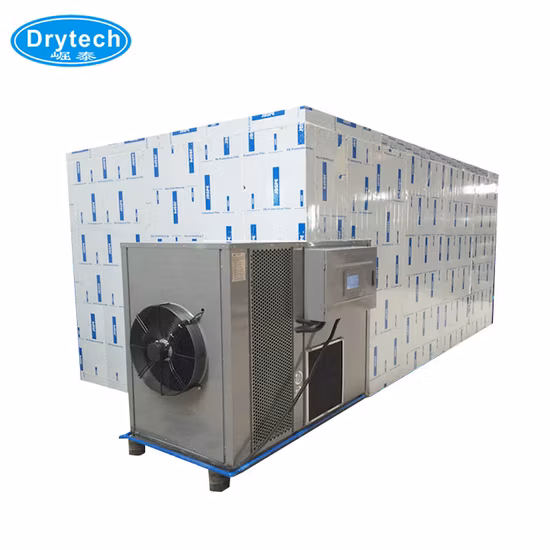

Hot Air Circulation Potato Pepper Pumpkin Drying Machine

Basic Info

Model NO.	RXH-0
Tray Number	24sets
Transport Package	Export Wooden Case
Specification	ISO
Trademark	Jun Lang
Origin	Jiang Yin
HS Code	8514109000
Production Capacity	80units/Year

Product Description

General Information:
It matches with low-noise axial-flow fan and automatic temperature-control system, the whole recalculating system is closed, which increase the heating efficiency from traditional 3%-7% to 35%-45%, the max heating efficiency can be 50%. Its design can be comparable to international advanced level. It saves a lot of energy and improves the profit for the enterprise. The pharmacy administration centre issued its standard in 1990; The standard type is RXH which meets GMP requirement.
1. Heating Source: Steam, conduct oil, hot water, electrical heating pipe, far infrared pipe, etc
2. Work Temperature: Steam heating: Room temperature ~140centigrade, max 150centigrade.
3. Electrical heating or far infrared heating: Room temperature~350centigrade4. Self-control system and computer control system for your selection
5. Normal steam pressure: 0.20.8Mpa
6. The electrical heating is 15kw (calculated on type 1), actual use power is 58kw/h
7. Any other special requirement, please note in the order request
8. The non-standard drying oven will design base on the process parameter
9. It should note in the order request if the work temperature is more than 140centigrade or less than 60 centigrade.
10. All the drying wagons and trays are with same dimension, it can be changed.
11. Tray dimension: 460× 640× 45mm.

Product Name	Hot Air Cycle Dry Oven
Model	RXH-0	RXH -I	RXH II	RXH -III	RXH -IV
Dry Capacity	60 kg/batch	120 kg/batch	240 kg/batch	360 kg/batch	480 kg/batch
Power	0.45 KW	1.1 KW	1.1 KW	2.2 KW	2.2KW
Steam Consumption	10 kg/h	20 kg/h	45 kg/h	71 kg/h	90kg/h
Dry Area	5 sq.m.	20sq.m.	40sq.m.	80sq.m.	100sq.m.
Temperature Difference	±2centigrade	±2centigrade	±2centigrade	±2centigrade	±2centigrade
Dry Tray	12	24	96	144	192
Baking Car	1	2	4	6	8
Overall Size	1.4x1.2x2.3m	2.3x1.2x2.3m	2.3x2.2x2.3m	3.4x2.2x2.6m	4.46x3.2x2m
